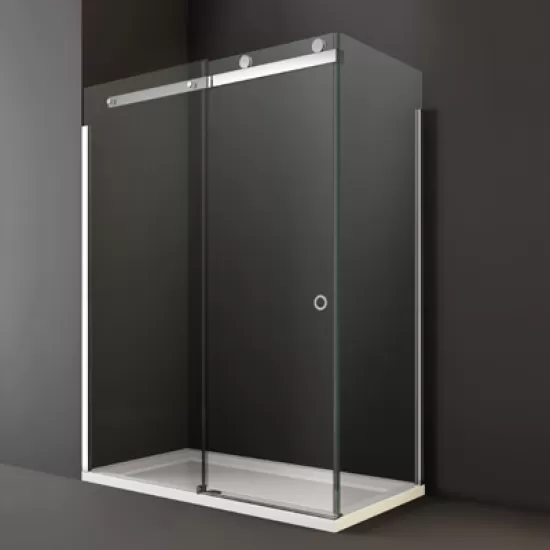

Merlyn Series 10 Sliding Door (with side panel)
Available Sizes:
1000 x 760mm
1000 x 800mm
1000 x 900mm
1100 x 760mm
1100 x 800mm
1100 x 900mm
1200 x 760mm
1200 x 800mm
1200 x 900mm
1400 x 760mm
1400 x 800mm
1400 x 900mm
1600 x 760mm
1600 x 800mm
1600 x 900mm
1700 x 800mm
1700 x 900mm
Colour: Mirror finished chrome
Height: 2100mm
10mm toughened safety glass
Mershield® Stayclear protected glass
Chrome eyelet handle
20mm max adjustment
Translucent seals
Quiet closing
Fully concealed fixings
Available in Clear glass or Smoked Black glass
Wetroom compatible
Model shown is Left Hand version

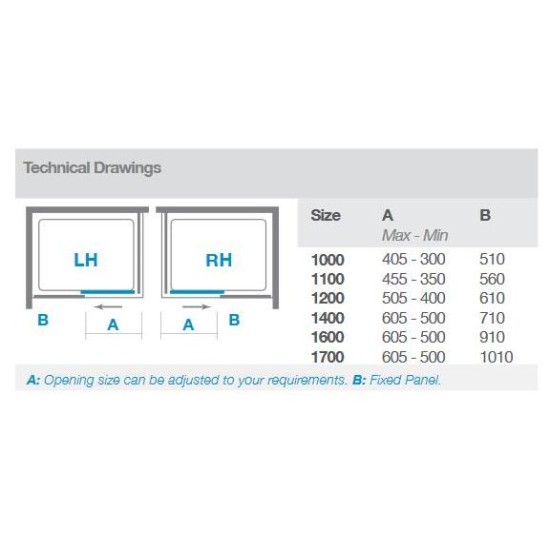

Adjustment Door:
Tray Sizes | Adjustment Tray Min - Max With Side Panel | Adjustment Wetroom Min - Max with Side Panel |
1000 | 965 - 990 | 945 - 970 |
1100 | 1065 - 1090 | 1045 - 1070 |
1200 | 1165 - 1190 | 1145 - 1170 |
1400 | 1365 - 1390 | 1345 - 1370 |
1600 | 1565 - 1590 | 1545 - 1570 |
Adjustment Sidel Panel:
Tray Sizes | Adjustment Tray Min - Max With Side Panel | Adjustment/ Wetroom Min - Max with Side Panel |
760 | 730 - 750 | 710 - 730 |
800 | 770 - 790 | 750 - 770 |
800 | 770 - 790 | 750 - 770 |
900 | 870 - 890 | 850 - 870 |
900 | 870 - 890 | 850 - 870 |
For Technical Information: please follow the link below:
http://www.merlynshowering.com/product/sliding-door-with-side-panel-2/
